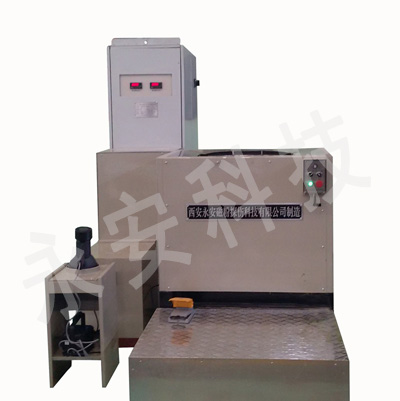

| XGT-A型旋轉磁場井式車鉤零件探傷機（三代） 適用范圍： 適用于機車車輛車鉤鉤體、鉤舌及軸箱等復雜形狀零件的磁粉探傷。 特點及技術指標 1. 采用自主知識產權的旋轉磁場磁化技術對探傷零件非接觸磁化，適應能力強，檢測可靠 2. 探傷主機采用井式結構，鉤體、鉤舌等被檢測件垂直吊掛探傷，不須摘鉤即可探傷，操作簡便效率高 3. 磁化電流由可控硅調壓模塊控制，電流大小可根據檢測的需要隨時調整 4. PLC程序控制噴淋與磁化過程，減少影響探傷的人為因素，操作簡單 5. 磁化裝置立放，外觀簡潔占地面積小，磁懸液垂直回流損失少 6. 磁化方式：旋轉磁場 7. 輸入功率： 45kW 8. 磁化峰值電流：0-2500A連續可調 9. 檢測效率：20件/小時 10. 井口尺寸：660×620mm（800×600mm） 11. 磁懸液箱容積：45 L 12. 檢測靈敏度：清晰顯示A1型標準試片15/50的人工缺陷 13. 剩磁：不大于0.3mT 14. 主機外形尺寸：1.07×0.91×0.90m（1.18m×1.06m×0.93m） 15. 主機總重：680kg（780kg）
XGT-A Magnetic Particle Flaw Detector (Pit shape ) for Coupler Accessories (Third generation) Applicable scope For magnetic particle testing of couplers, coupler knuckle, axle box, and various other accessories with complicated shapes. Features and Technical parameters 1. Adopt to the independent intellectual property rights of rotating magnetic field non-contact magnetization, magnetic field distribution more uniform, use and reliable 2. Adopt to the well structure, such as coupler, coupler knuckle is detected a vertical hanging detection, easy to operate with high efficiency. 3. Magnetizing current controlled by SCR module of voltage regulation, current can be adjusted at any time according to the need of the inspection 4. Inspection process adopts PLC programmable controller control, easy operation and reliable 5. Magnetizing device vertically, appearance is concise and cover an area of an area small, less magnetic suspension vertical flow loss 6. Magnetization mode: Rotary Magnetic Field 7. Input power: 45kW 8. The peak value current of magnetization: 0-2500A continuously adjustable 9. Detecting Efficiency:20 couplers(coupler yoke, coupler knuckle)/h 10. The size of well mouth: 660×620（800×600）mm 11. Volume of Magnetic-field-Supported Fluid Tank:45L 12. Detecting Sensitivity: Clearly displays the artificial faults of A1 standard test piece 15／50 13. Residual Field: ≯ 0.3Mt 14. Mainframe Contour Size: 1.07×0.91×0.90(1.18×1.06×0.93)m 15. Mainframe Gross Weight: 680 (780) kg
|
